Home > Products > Polycarbonate Sheets > Diffuser sheets
PROFESSIONAL GRADE

Polycarbonate Diffuser Sheets

Premium light diffusion technology for professional LED light boxes. Eliminates hotspots, ensures uniform lighting.

A corner of white polycarbonate diffusion sheet
Professional Diffuser Sheet

Advanced Bayer technology for optimal light distribution

Advanced Light Diffusion Technology

Sophisticated chemical particle and resin matrix creates uniform light scattering through continuous refraction, reflection, and diffusion

How Diffusion Technology Works

Light Refraction

Chemical particles bend incoming light rays at multiple angles, breaking up direct beam patterns

Multiple Reflection

Light bounces between particles and resin matrix, creating even distribution across the entire surface

Uniform Scattering

Final result is soft, even illumination that eliminates visible LED hotspots and harsh shadows

Key Performance Benefits

85-95%
Haze Value
Optimal diffusion
85-92%
Light Transmission
High brightness
200x
Impact Strength
vs Acrylic
10+
Years Lifespan
Outdoor use

Visual Light Distribution Comparison

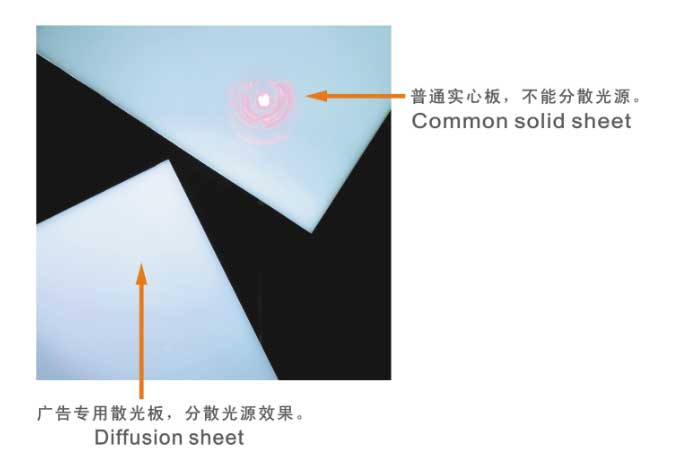

Side-by-side comparison showing softer and more uniform lighting when using polycarbonate diffuser sheet compared to a regular panel

Professional vs Standard Comparison

PC Diffuser Sheet Result

Soft, uniform lighting with no visible LED hotspots or harsh lines

Regular Panel Result

Visible LED lines, uneven brightness, and harsh lighting effects

Why This Matters
  • Professional appearance for commercial signage
  • Reduced eye strain and better visibility
  • Enhanced brand image and customer experience
  • Consistent lighting across large panels

Material Performance Comparison

Why polycarbonate diffuser sheets outperform alternative materials

PC Diffuser vs Acrylic (PMMA)

PC Diffuser Sheet

95/100
✓ Advantages
  • 200x impact resistance vs acrylic
  • Superior weather resistance
  • Wide temperature range (-40°C to +120°C)
  • Excellent UV stability
✗ Limitations
  • Slightly higher cost
  • Lower transparency than clear acrylic

Acrylic (PMMA)

70/100
✓ Advantages
  • High transparency (92%)
  • Lower material cost
  • Easy processing
✗ Limitations
  • Poor impact resistance
  • Prone to cracking
  • Yellowing over time
  • Limited outdoor durability

Technical Specifications

Property Specification Benefit
Material PC Polycarbonate with Bayer diffusion technology Advanced diffusion technology for professional results
Thickness Range 1.2mm - 12mm Covers all light box and signage requirements
Maximum Width 2100mm Large format capabilities without seams
Length Unlimited custom lengths Unlimited project size flexibility
Color White (optimized for light diffusion) Optimized white color for maximum light efficiency
Light Transmission 85-92% (varies by thickness) High brightness with excellent diffusion
Haze Value 85-95% (uniform light scattering) Perfect balance of diffusion and clarity
Temperature Range -40°C to +120°C Reliable performance in all climates
Impact Resistance 200x stronger than acrylic Virtually unbreakable in normal use
UV Protection Both sides UV treated Long-term outdoor durability

Premium Functional Material

Polycarbonate diffuser sheets represent our premium functional material category, manufactured with advanced Bayer light diffusion technology on Italian OMIPA production lines. Higher cost reflects superior optical performance and durability compared to standard polycarbonate sheets.

Professional Applications

Trusted by professionals for demanding signage and lighting applications

📱

Advertising Light Boxes

LED advertising panels
Outdoor billboards
Transit advertising
Store front signage
🏢

Commercial Signage

Shopping mall directories
Airport wayfinding
Hospital signage
Office building signs
🎯

Display Applications

Exhibition displays
Trade show panels
Museum lighting
Retail displays
💡

Interior Lighting

Ceiling light diffusers
LED panel covers
Architectural lighting
Office lighting

Premium Manufacturing Excellence

Bayer Diffusion Technology

Advanced Particle Engineering

Precisely engineered chemical particles for optimal light scattering

Consistent Optical Performance

Uniform diffusion properties across entire sheet surface

Long-term Stability

Maintains diffusion properties throughout product lifespan

Italian OMIPA Solid Sheet Line

Precision Extrusion

Perfect thickness uniformity and surface quality

Quality Control

Continuous monitoring of optical and mechanical properties

European Standards

Exceeds international quality requirements for professional use

Customer Reviews

4.8
★★★★★
Based on 127 reviews
5 star
83%
4 star
14%
3 star
2%
2 star
1%
1 star
0%
D

David Chen

Advertising Agency Creative Director
★★★★★
December 2024
Perfect diffusion for our premium LED displays

We've used various materials for light boxes over the years, but these PC diffuser sheets are in a different league. The light distribution is incredibly uniform - no more visible LED hotspots that made our displays look unprofessional. Client satisfaction has increased significantly since switching to these panels.

Professional Quality Uniform Lighting Client Satisfaction
Was this review helpful?
M

Maria Rodriguez

Shopping Mall Operations Manager
★★★★★
November 2024
Excellent durability for high-traffic areas

Replaced all our directional signage with these diffuser panels 18 months ago. They still look brand new despite constant use in a busy mall environment. The impact resistance is impressive - we've had shopping carts bump into them with no damage. Much better than the acrylic panels we used before.

High Durability Impact Resistant Long-lasting
Was this review helpful?
R

Robert Kim

Sign Shop Owner
★★★★★
October 2024
Superior to acrylic in every way

Made the switch from acrylic to these PC diffuser sheets for all our light box projects. The difference is night and day - better light diffusion, no cracking issues, and customers love the professional appearance. Yes, they cost more upfront, but the reduced warranty claims and happy customers make it worthwhile.

Superior to Acrylic Professional Results Worth the Investment
Was this review helpful?

Frequently Asked Questions

Yes, we offer custom cutting to any size up to 2100mm width. While white is standard for optimal light diffusion, other colors are available on request for special applications.

No, our sheets feature dual-side UV protection and maintain optical properties for 10+ years of outdoor use without significant yellowing or performance degradation.

Thickness depends on structural requirements and light box size. Haze level affects diffusion - higher haze (90-95%) gives more uniform diffusion but slightly lower total light transmission. Our technical team can recommend optimal specifications.

PC diffuser sheets typically cost 20-40% more than acrylic initially, but offer superior durability, impact resistance, and optical consistency, resulting in lower total cost of ownership.

Use proper mounting systems with adequate ventilation. Avoid over-tightening screws to prevent stress cracking. For large panels, ensure even support distribution. Our installation guide provides detailed instructions for optimal results.

We provide a 10-year limited warranty covering UV degradation, yellowing, and optical performance. Manufacturing defects are covered for 2 years. Warranty terms vary by application and environmental conditions.

Bayer Technology

Advanced diffusion materials

OMIPA Production

Italian precision manufacturing

Professional Grade

Commercial signage quality

Perfect Diffusion

Eliminates LED hotspots

10+
Years Experience
2100mm
Maximum Width
500+
Projects Completed
99%
Customer Satisfaction

Quality Certifications & Standards

ISO 9001 Certified
CE Marking
RoHS Compliant
REACH Certified
